SPECIFICATIONS

Angle of View: 70 degree

Brand Name: ANNKE

Cable Length: None

Camera Housing: Plastic for Main Part

Camera Video Resolution: 3MP (2304X 1296)

Certification: CE,FCC

Feature 1: Wireless Video Surveillance Kit

Feature 10: surveillance camera

Feature 11: video security system

Feature 12: video surveillance

Feature 2: Wifi Security Camera System

Feature 3: Home Wireless Video Surveillance Kit

Feature 4: Video surveillance wifi

Feature 5: Security Camera System

Feature 6: CCTV Video Surveillance

Feature 7: CCTV Camera System

Feature 8: kit video surveillance

Feature 9: cctv camera

HDD Capacity: Up to 6 TB Capacity

High-concerned chemical: None

IR-Cut Filter: YES

Image Sensor: 1/2.8" Progressive Scan CMOS

Lens: 3.6mm

Max Playback Capacity: 4CH 3MP/2CH 5MP

Max Playback Channel: 4CH

Max Playback Resolution: Up to 5MP (2560 X 1920)

Max Recording Resolution: Up to 5MP (2560 X 1920)

Model Number: N48WHR-74GK

NVR Audio Output: Support

Night Vision Distance: Up to 100 ft/30 m

Number of Infrared LEDs: 18pcs

Operating Power: DC 12V

Origin: Mainland China

PCS of Camera: 4PCS,6pcs,8PCS

Recorder Housing: Metal for Main Part

Resolution: 3 MP

Smart home platform: Other

TV System: NTSC,PAL

Video Compression: H.264+

Video Input: 8 Channel

Video Output: HDMI and VGA up to 1080p

WiFi: 2.4 GHz (Built-in Antenna)

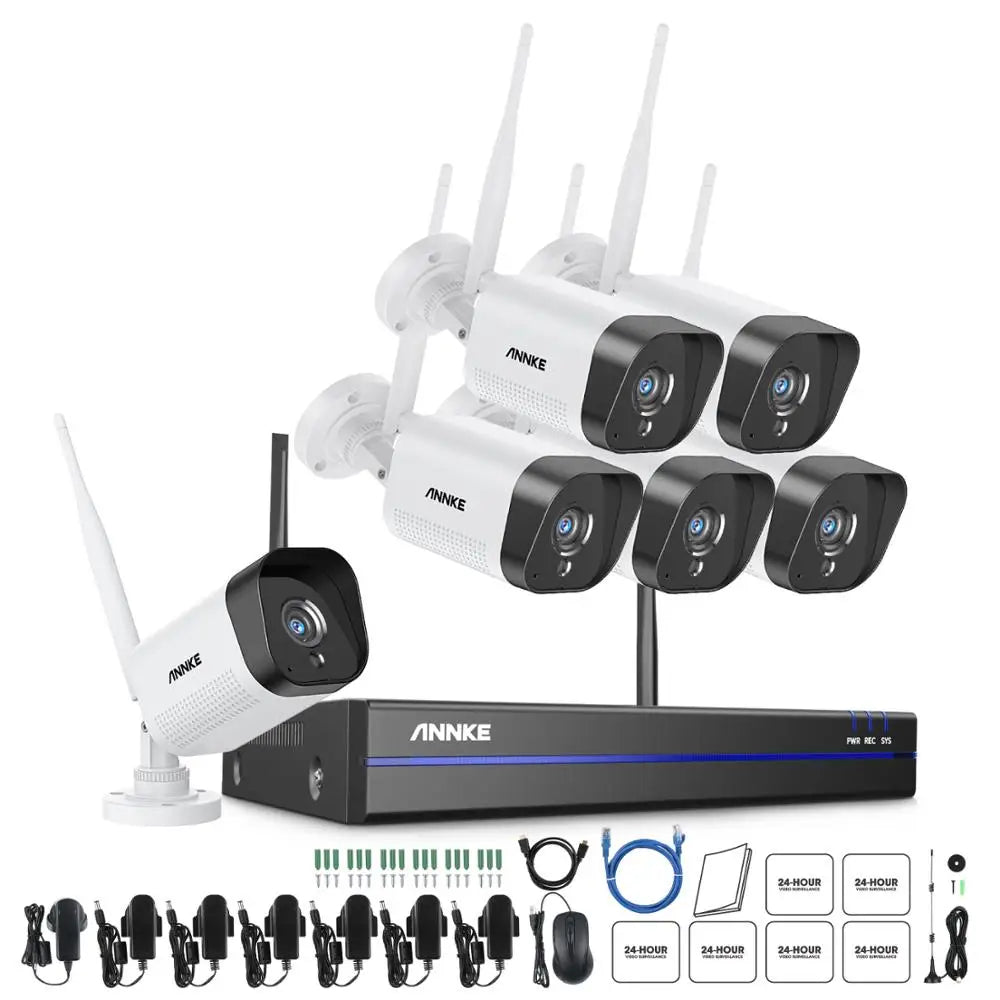

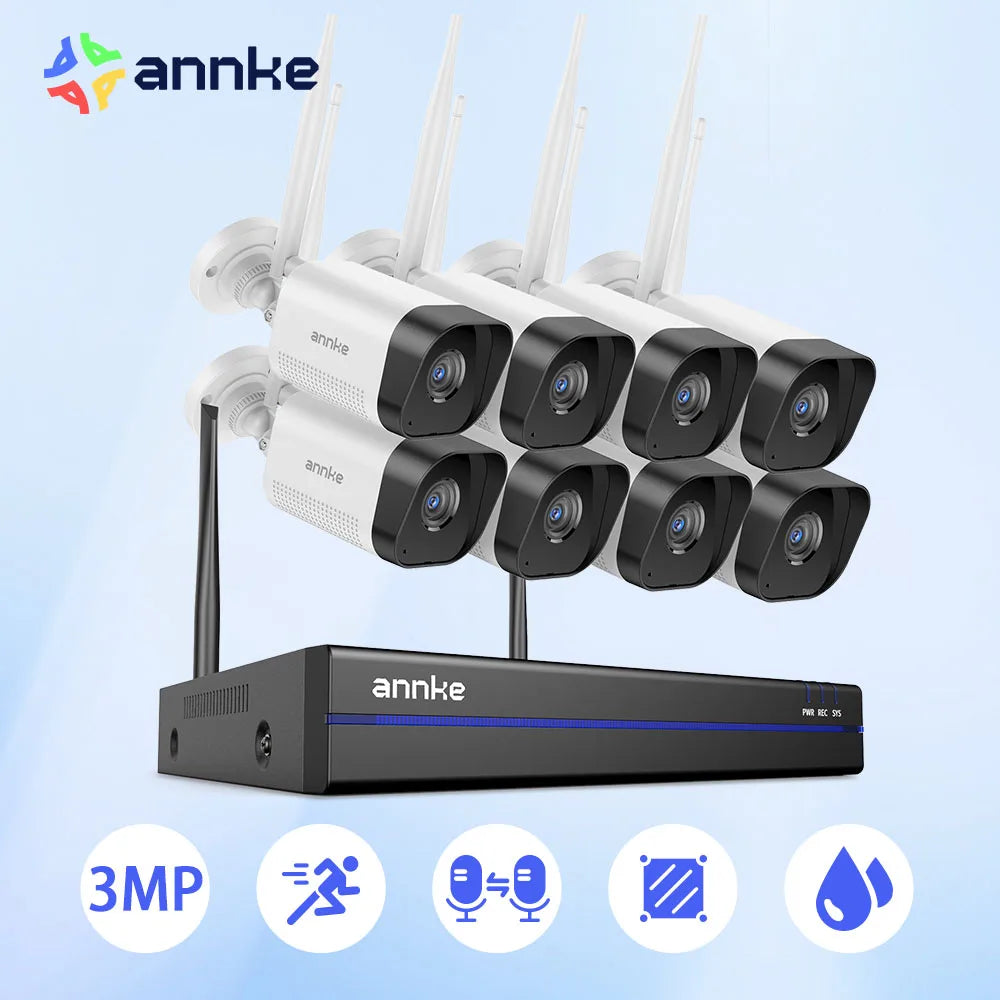

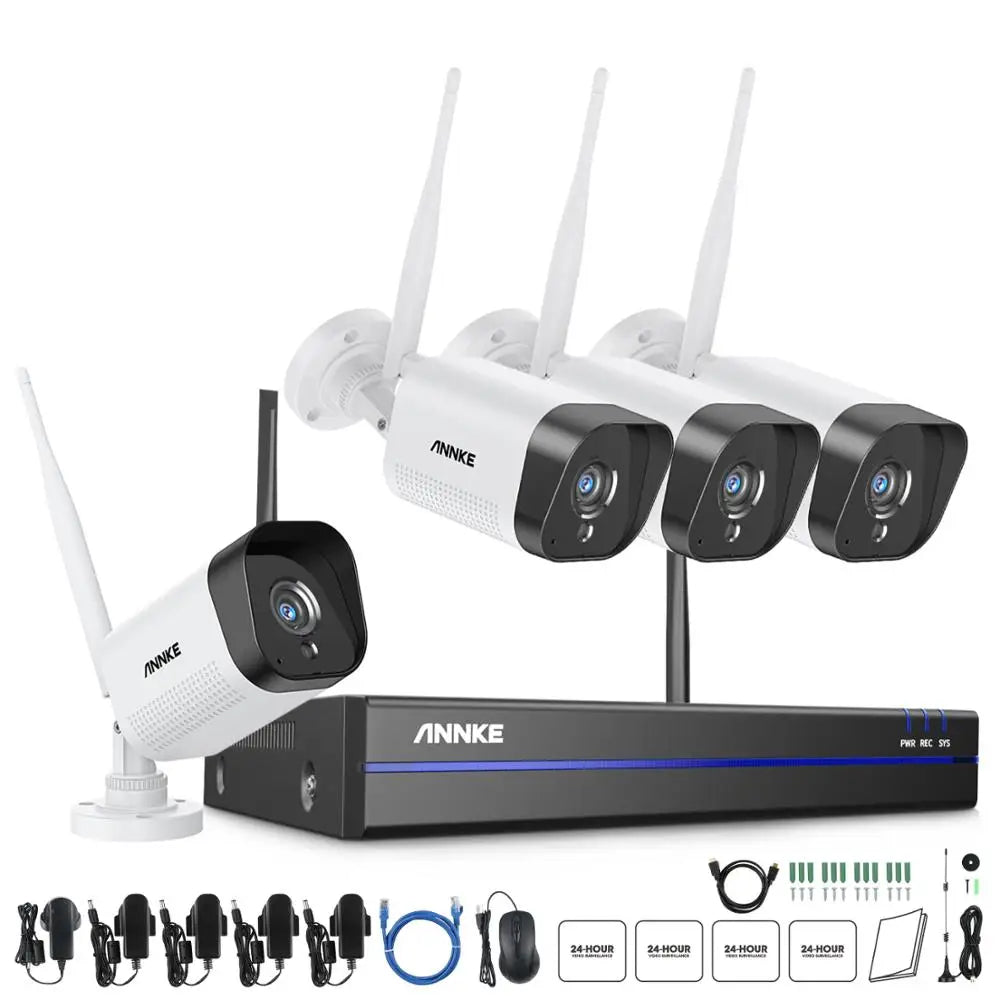

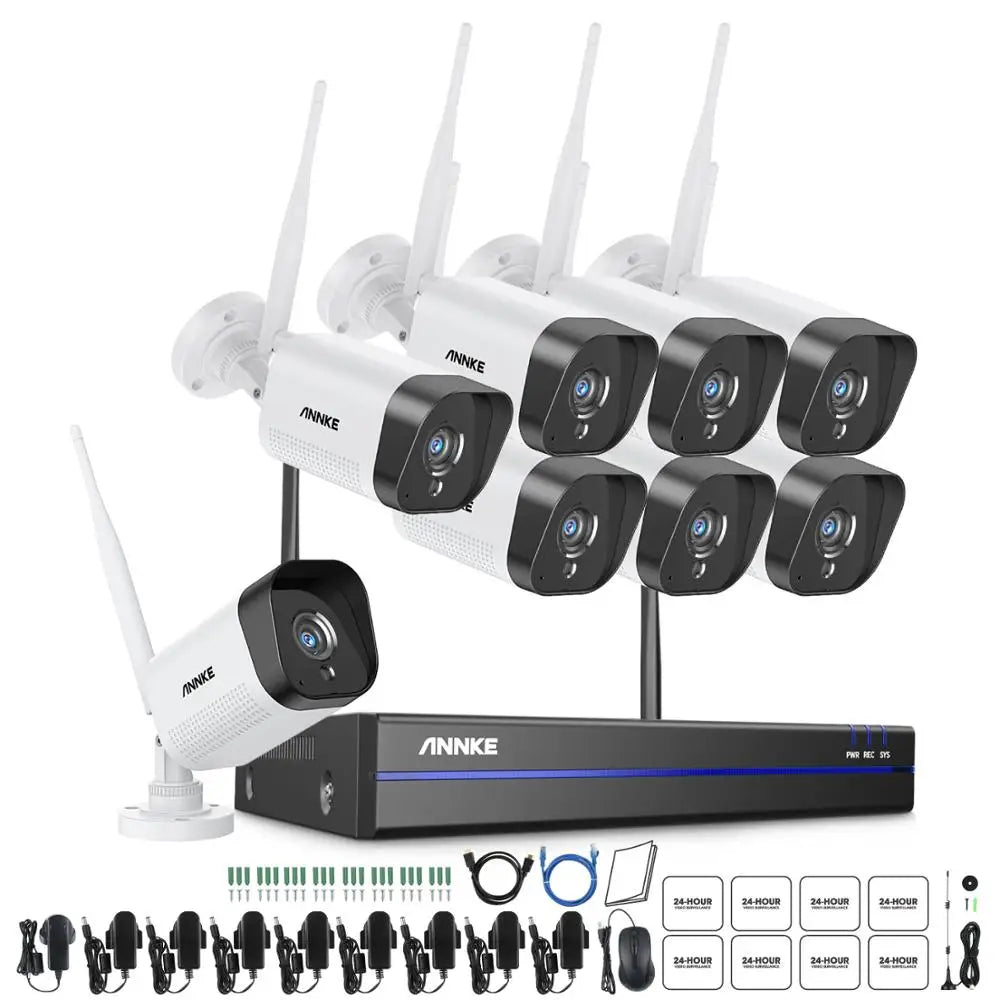

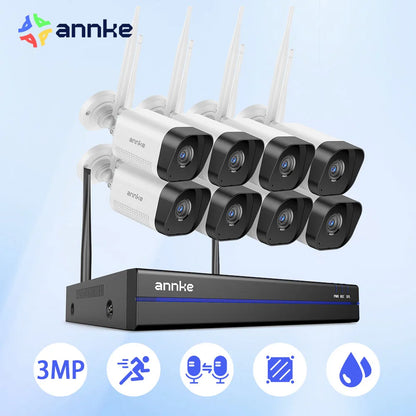

ANNKE WS300 8CH 3MP Super HD Wireless Security Camera System

Key features:

· 3MP FHD video viewing, recording and playback

· Wi-Fi access, real plug-and-play system

· Advanced H.264+ Video Compression

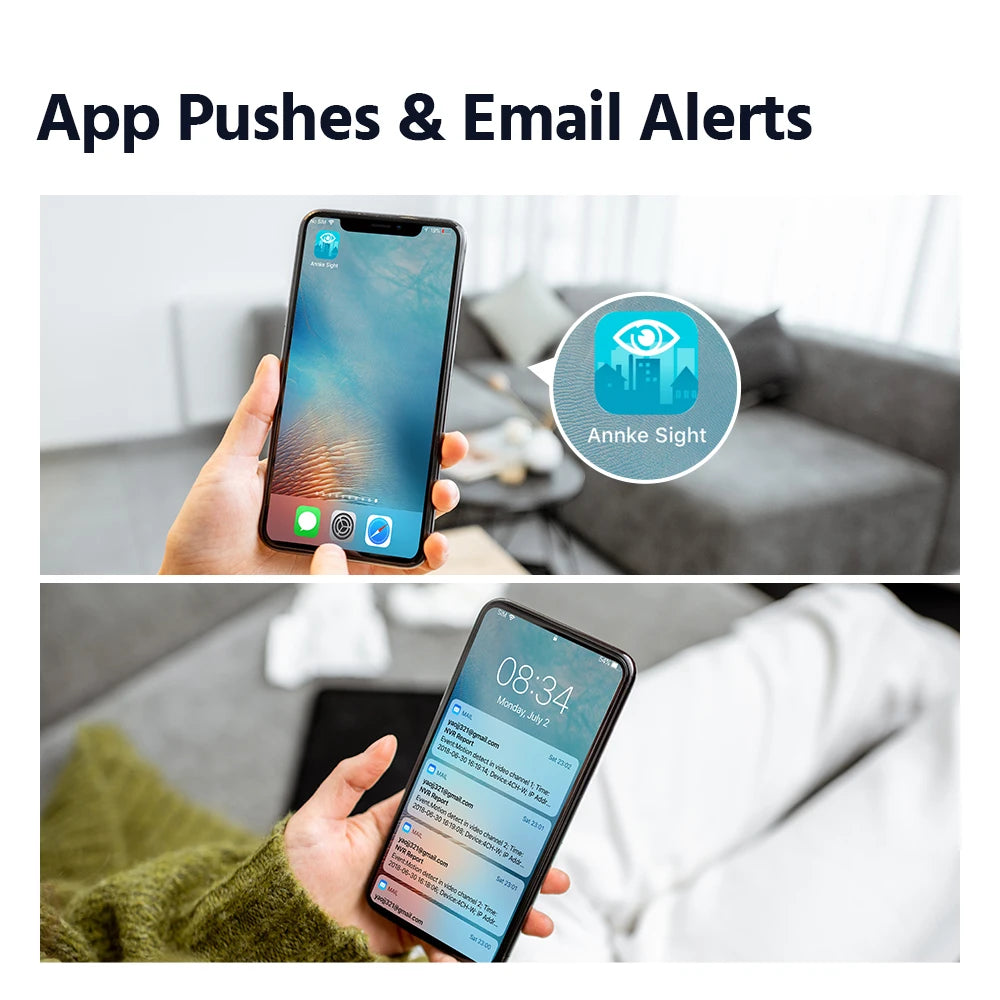

· Instant motion detection email alert

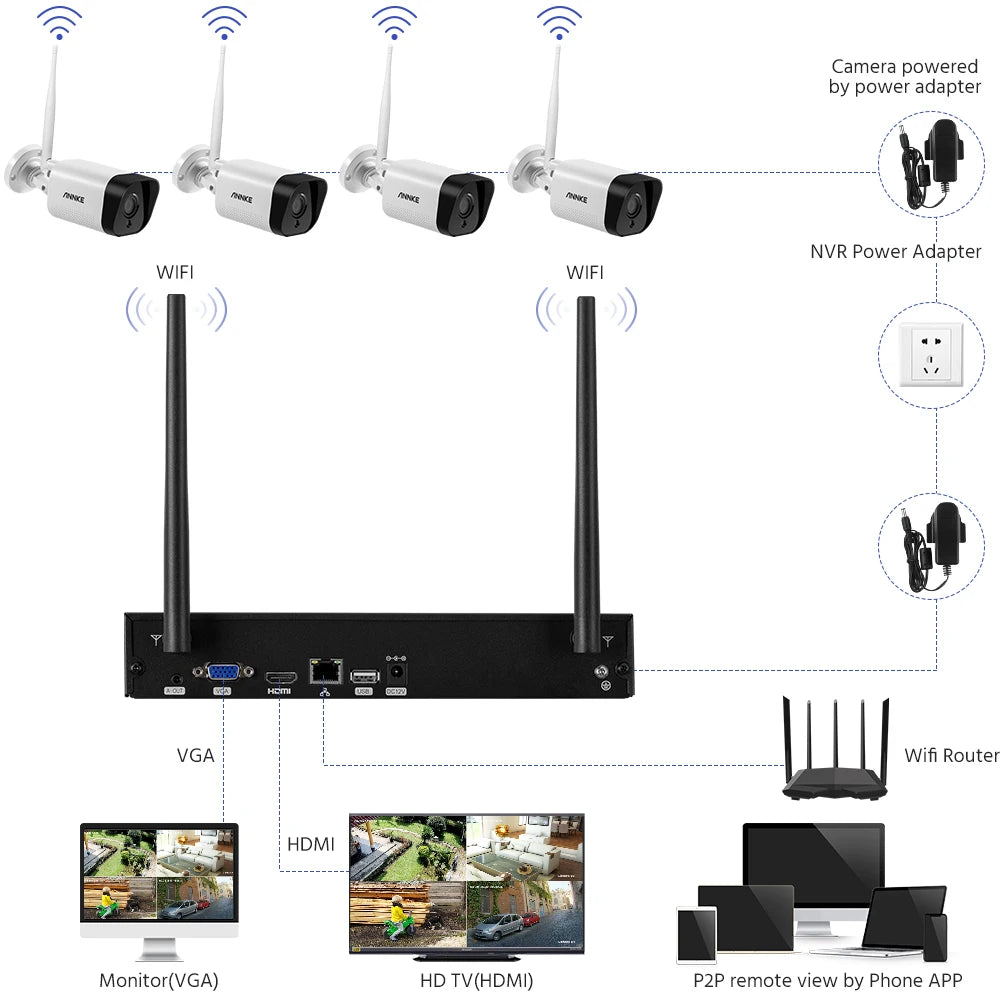

· HDMI and VGA outputs for TV, monitor and computer

· Simple-to-use app for mobile monitoring

· True day and night continuous protection

· Up to 100ft night vision with Smart IR

· IP66 weatherproof indoor and outdoor cameras



NVR
NVR	Video Compression	H.264+
	IP Video Input	8CH Wireless
	Video Output	HDMI and VGA up to 1080p
	Audio Output	Support
	Max Recording Resolution	Up to 5MP (2560 X 1920)
	Max Playback Resolution	Up to 5MP (2560 X 1920)
	Max Playback Channel	4CH
	Max Playback Capacity	4CH 3MP/2CH 5MP
Hard Drive	HDD	1 SATA Interface
	HDD Capacity	Up to 6 TB Capacity
External Interface	Network Interface	RJ45 X1 (10/100 M)
	Wireless Antenna	2 Ports (IEEE802.11b/g/n)
	WiFi	2.4 GHz (Built-in Antenna)
	USB	USB 2.0 X1
General	Housing	Metal for Main Part
	Operating Power	DC 12 V
	Power Consumption	6W (Without HDD)
	Working Temperature	14 °F ~ 131 °F/-10 °C ~ 55 °C
	Dimensions (W X H X D)
	Weight (Without Hard Disk)
IP Camera
Camera	Video Resolution	3MP (2304 X 1296)
	Image Sensor	1/2.8" Progressive Scan CMOS
	Audio Compression	G.711A
	Video Compression	H.264+
	Lens	3.6 mm
	Angle of View	70°
	Number of Infrared LEDs	18
	Night Vision Distance	Up to 100 ft/30 m
	IR-Cut Filter	Yes
	Ethernet	RJ45 X1 (10 M/100 M)
General	Wireless	IEEE802.11b/g/n
	Housing	Plastic for Main Part
	Operating Power	DC 12 V
	Operating Temperature	-4 °F – 140 °F/-20 °C – 60 °C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP66
	Dimension (L X W X H)
	Weight
